Do Neighborhoods Spread?

Growing up White in West Philly, I thought a lot about neighborhood boundaries. Somehow, despite “West Philadelphia” being predominantly Black, my block at 47th Street was entirely White. To the east, towards Penn and Drexel and Center City, lay more blocks like my own, filled with predominantly White households. Immediately past 49th Street to the West, though, the demographics shifted, with those blocks composed of entirely Black households. 49th Street served as the boundary between the two neighborhoods. It wasn’t an official boundary, not on any map, but it had emerged from the sorting of household moves and residents’ use of space.

The neighborhood has changed in the last 30 years. Signs of gentrification now pepper Baltimore Ave, from a brew pub to a yoga studio to, most recently, a baby clothing store. As the neighborhood changed, the population changed in a very specific way. That boundary between White and Black households, which used to lie on 49th Street, moved. The boundary now, by various accounts, has reached 51st. The arriving White households aren’t moving in gradually and uniformly across West Philadelphia, but instead are moving in just on the other side of the boundary, flipping whole blocks from nearly entirely Black to nearly entirely White, as the White region spreads in space.

Neighborhood change researchers rarely use models capable of the notion of neighborhoods spreading. Instead, we download data in Census Tracts, and compare those tracts’ populations across time. In doing so, we miss an important feature of how and why gentrification is happening.

In forthcoming research, I develop a method to quantify boundary movements and their contribution to demographic change. In this post, I rely on maps of Philadelphia to tell the same story.


Gentrification Spreads Outward

A recent report by Pew Charitable Trusts made headlines by showing that gentrification was much rarer than we might imagine. By Pew’s definition, only 15 of Philadelphia’s 372 census tracts gentrified between 2000 and 2014. The city’s racial trends tell the same story. Figure 1 shows the ethnoracial composition of the city’s households according to the Decennial Census.[1] From 2000 to 2010, the city changed from 47.9% White to 42.6%, from 40.3% Black to 41.0%, 3.6% Asian to 5.2%, and 6.4% Hispanic to 9.3%. The overall story of the city is not one of increasing Whiteness.

jonathan blog pic 1

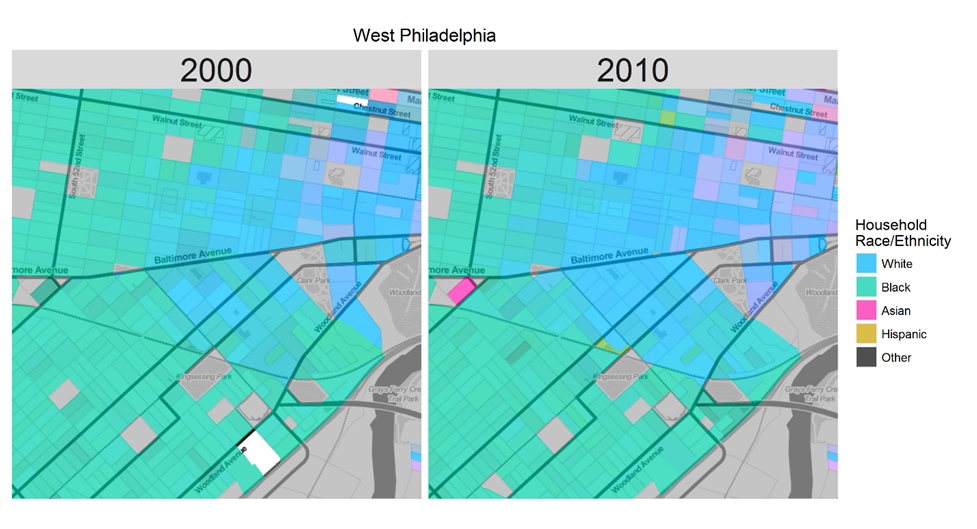

However, gentrification is the story of some neighborhoods. Figure 2 maps the race and ethnicity of University City in West Philadelphia. Blocks are colored as a weighted average of their household races, so that 100% White blocks would be blue, 100% Black blocks green, 100% Asian blocks red and 100% Hispanic blocks orange. A block that was 50% White and 50% Hispanic would be a blue-orange mix, appearing brown. First, notice the extreme segregation; blocks are often all-White or all-Black. The boundary that emerges between the two regions is sharp and well-defined; within the distance of one or two blocks, the households change from all-Black to all-White.

Second, notice that the way gentrification occurred is that the boundary moved. Demographics changed only on blocks just along the boundary—we don’t see population change in the middle of the large all-White or all-Black cluster—and on those blocks it changed sharply. Zoomed out, it’s clear that the White cluster to the right has expanded westward, taking over blocks from the Black cluster.

jonathan blog pic 2

Graduate Hospital, in south Center City, shows the same pattern. In 2000, there was a well-defined boundary between a White and Black cluster that lay just below South Street. As the neighborhood gentrified, it did so by that line moving south to Washington Avenue, with sharp changes in the blocks that the boundary passed over.

jonathan blog pic 3

The Fairmount neighborhood, another noted center of gentrification, also had a boundary that moved. In 2000, the Black cluster extended south of Girard Avenue, by 2010 the boundary had moved north to reach that business strip. A walk through the neighborhood will exhibit that the boundary has now passed even farther to the north.

jonathan blog pic 4

What we see in all of these maps, and consistently across the city, is that gentrification did not happen by gradual demographic changes in blocks. Neighborhoods didn’t change by an 80% Black region becoming 75% Black, and then 70%. Instead, gentrification occurred by regions of all-White blocks expanding, dichotomously switching the blocks over which the boundary passes.

To quantify this, I develop a Bayesian spatiotemporal clustering algorithm to identify these clusters and their movement. This algorithm identifies the clusters readily visible on the map, and draws the lines between them. This allows us to quantify those boundaries’ movements. Figure 5 shows the resulting clusters for the three neighborhoods above. In each, we see a clear boundary moving as the Whiter cluster expands into the Blacker one.

How is it possible that the city became less White over the decade if the White clusters are expanding spatially? Clusters are internally becoming less White, and more Hispanic, Asian, and Black. Gentrification specifically occurs by spatial expansion, as the increases in these other groups which actually dominate the city’s overall demographics occur by clusters’ internal changes (the internal colors of the clusters are gradually changing).

jonathan blog pic 5

Implications of Gentrification by Boundary Movement

What does this all mean for neighborhood change? There are two important implications for how we conceptualize gentrification.

Gentrification will occur where the boundaries are

The spatial targeting of investments is important to city management. We often build a supermarket or beautify a park with hopes of either avoiding demographic change—so current residents can reap the rewards—or instigating it—so local investments can have multiplier effects. Investments that are far from a boundary won’t trigger demographic change, while investments right along the boundary likely will.

Gentrifiers move in on one side of a boundary to associate with the other

Boundary movements imply a very specific model of how gentrifiers choose a house: they want to live in the already-gentrified cluster, but move in just on the other side to exploit the not-yet-gentrified prices. What will happen when they do? Likely, their days will be spent in the White cluster—that’s where they will shop, will eat, will walk. Sociologists call this “activity space”. Why else prefer to live on the boundary, rather than in the heart of the cluster, where rents are presumably even cheaper?

Boundary movements limit the desegregatory potential of gentrification

The segregation of poverty has damaging effects for residents and society. Therefore, we might guess that gentrification, by increasing White populations in predominantly Black neighborhoods, should have positive desegregatory effects. But boundary movements mean that the blocks themselves are not desegregating, but rather mostly-Black blocks are switching to mostly-White blocks. While tract aggregates might show declines in segregation, blocks would belie this.

Further, the segregation of activity space will be even starker. The sharpness of these boundaries suggests that they matter to residents, and a likely implication is that they will segregate their lives accordingly. When neighborhood change then proceeds by moving boundaries, residents will expand and contract their use of space to correspond to the new boundaries, and activity space segregation will have zero change.


Future Work

This research represents a first step into measuring the fine-scale spatial change of neighborhoods. There are many questions left open. How do these boundaries constrain residents’ use of space? How do other variables interact with these boundaries? What is causing where and when they move? Recognizing that boundaries do move, and specifically so for gentrification, makes possible a new understanding of how neighborhood change happens, and what it means.


[1] This post relies entirely on Census household race and ethnicity data. Gentrification is typically defined by increases in wealth and property values, so the equation of racial change and gentrification isn’t perfect. However, in cities like Philadelphia, gentrification and increasing White populations go hand in hand, and it is often the racial dynamics of gentrification that causes tensions and concern. Moving forward, I use gentrification to mean increasing proportion-White. Be forewarned.


tannen photo


Jonathan Tannen, Ph.D., is a Director at Econsult Solutions, Inc (ESI). Jonathan’s dissertation research used GIS and large-scale computational techniques to develop a Bayesian method to measure the movement of neighborhood boundaries.
